Advanced Electrical Rotary Joints for Specific Applications

ELECTRIC ROTARY JOINTS (SPECIFIC)

MULTI PASSAGE / MULTI PORT / MULTI CHANNEL ROTARY JOINTS

FOR ELECTRICAL SPECIFIC APPLICATIONS

OUR ADVANCED WORLD-CLASS PRODUCT PORTFOLIO PROVIDES OUTSTANDING SOLUTIONS, ENGINEERED FOR UNMATCHED PERFORMANCE AND REFLECTING FOURWENT’S PROVEN SOLUTION EXPERTISE.

FOURWENTS DELIVERS TAILORED SOLUTIONS FROM CONCEPT TO PRODUCTION. OUR ROTARY UNION AND SLIP RING TECHNOLOGIES PROVIDE COMPACT, RELIABLE TRANSFER OF FLUID, POWER, SIGNALS, AND DATA. CUSTOMERS ARE CENTRAL TO EVERY STAGE, EVEN WITH COMPLEX ROTARY JOINTS. ALONGSIDE PURE POWER UNIONS, WE OFFER HYBRID DISTRIBUTORS THAT COMBINE MEDIUM AND ELECTRICAL UNIONS, OFTEN INTEGRATING STEEL COMPONENTS WITH CUSTOM TRANSFORMERS

TYPICAL FEATURES / TECHNICAL SPECIFICATION

EACH ELECTRICAL ROTARY UNION IS CUSTOM-BUILT TO MEET CUSTOMER SPECIFICATIONS. YOU DEFINE THE NUMBER OF POLES, CABLE LENGTH AND DESIGN, PROTECTION LEVEL, AND OTHER KEY PARAMETERS.
PRECISION DESIGN, TAILORED TO YOUR REQUIREMENTS
MAXIMUM VOLTAGE: 250V / 500V
AMPER RANGE: mA-RANGE UNTIL TO WELD CURRENT
ROTATIONAL SPEED, ELECTRICAL : 100U/min HIGHSPEED-VARIETY TO 10,000 U/min POSSIBLE. BUS SYSTEM ON REQUEST: PROFI-BUS / INTER-BUS / CAN-BUS / ASI-BUS / ETHERNET / PROFINET / CC-LINK / ETHERCAT
PRESSURE : -0.9 BAR / 16 BAR ( 100 BAR ON REQUEST )
TEMPERATURE : : 0°C TO +80°C ( SPECIFIC TEMP. RANGE ON REQUEST)
SEAL MATERIAL : NBR ( OTHER SEAL MATERIAL ON REQUEST)

DESIGN FEATURES

EACH ELECTRICAL ROTARY UNION IS CUSTOM-BUILT TO MEET CUSTOMER SPECIFICATIONS.
YOU DEFINE THE NUMBER OF POLES, CABLE LENGTH, DESIGN, PROTECTION LEVEL, AND OTHER KEY PARAMETERS.
APPLICATION: ROTARY JOINTS SERVE AS CONNECTIONS BETWEEN STATIONARY AND ROTATING MACHINE ELEMENTS
OPTIMAL FLEXIBILITY FOR YOUR APPLICATION.
PRESSURE: -0.9 BAR / 16 BAR (EXTENDED PRESSURE RANGE AVAILABLE UPON REQUEST)
TEMPERATURE: 0°C / +100°C (MULTIPLE EXTENDED TEMPERATURE RANGE AVAILABLE UPON REQUEST)
MEDIA: COMPRESSED AIR, VACUUM ( HYDRAULIC OIL, WATER, OTHER / DIFFERENT MEDIA ON REQUEST )
FILTERING: LIQUID MEDIA: 5 µm GASEOUS MEDIA: 30 µm
OUSING MATERIAL : ALUMINUM - ANODIZED ( OPTIONAL: STAINLESS STEEL)

FADSR-HF SERIES

SLIP RINGS FOR MILITARY / DEFENCE / RADAR & AEROSPACE APPLICATIONS

SINGLE TO MULTI-CIRCUITS HIGH FREQUENCY COAXIAL ROTARY JOINTS

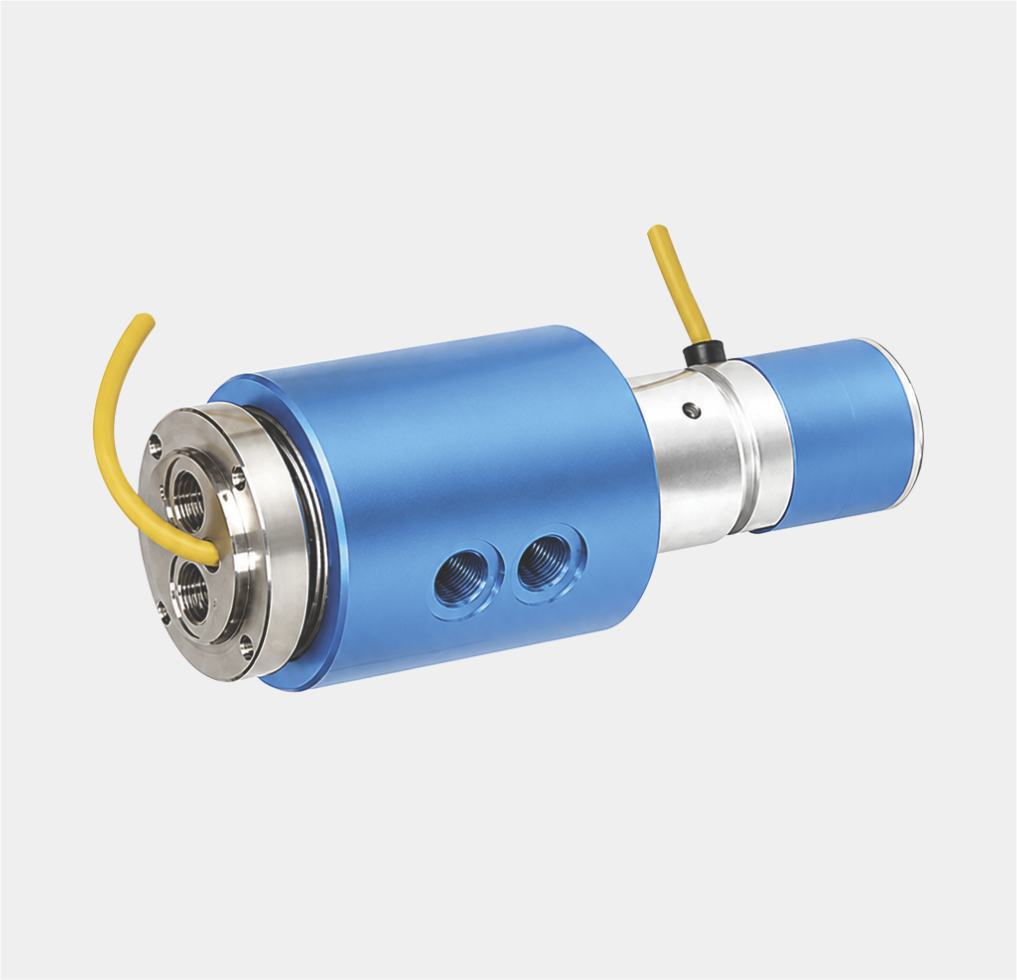

SPECIFIC-1

STANDARD ROTARY JOINTS ASSEMBLED TOGETHER

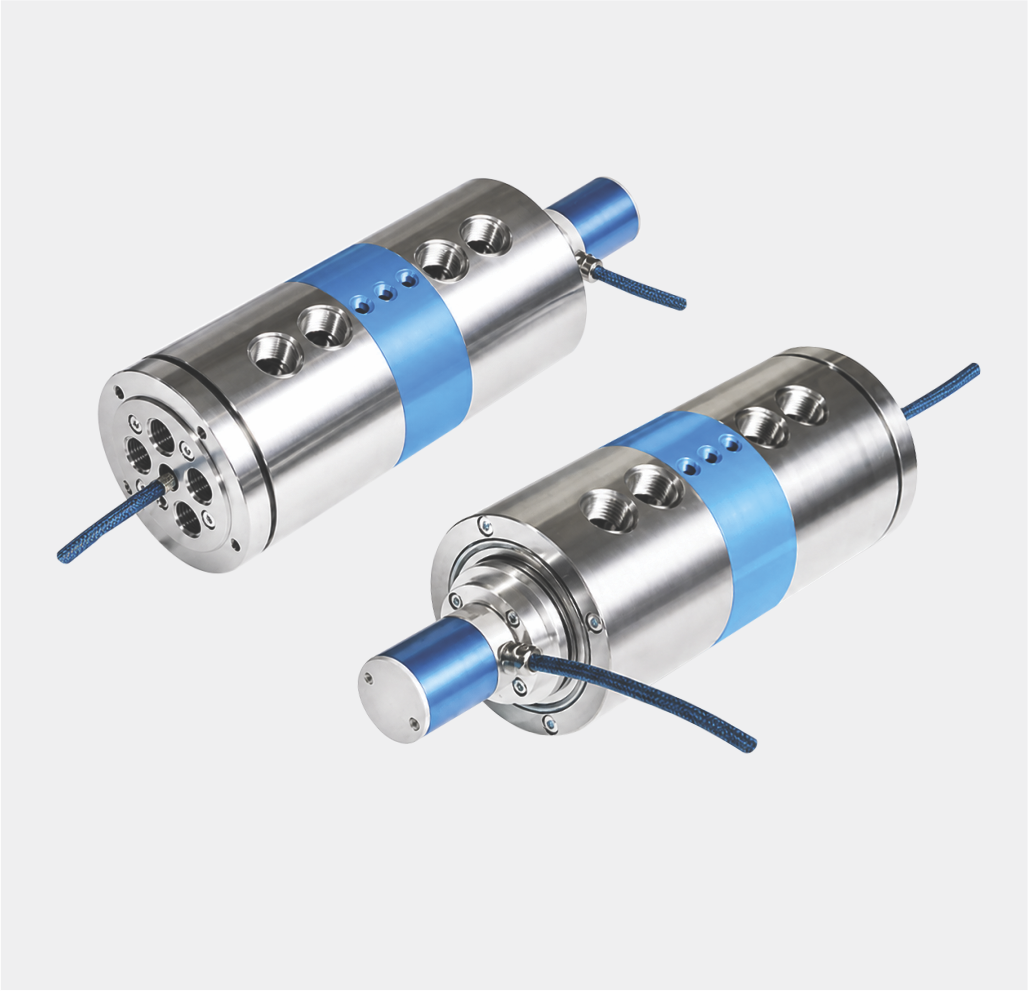

SPECIFIC-2

COMPACT MODULAR SANDWICH CONSTRUCTION WITH CHOSEN MATERIALS

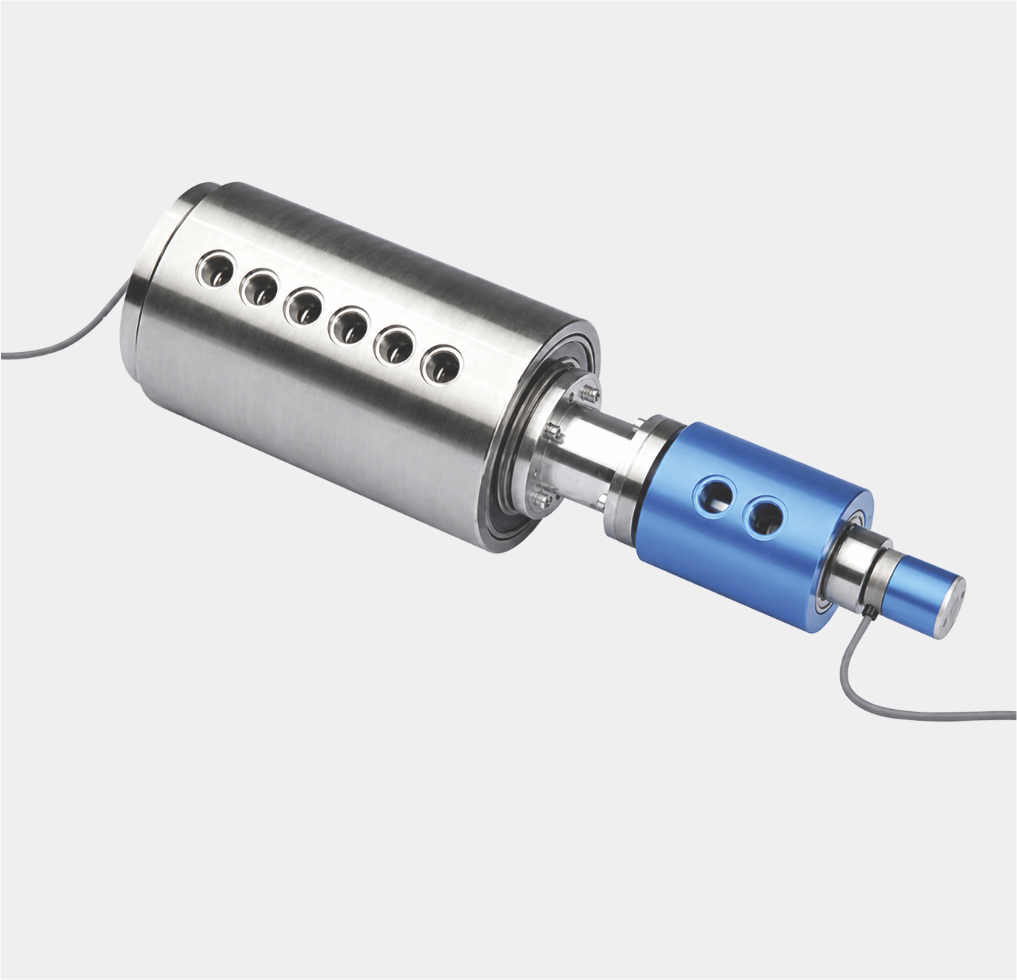

SPECIFIC-3

STANDARD ROTARY JOINTS IN COMBINATION

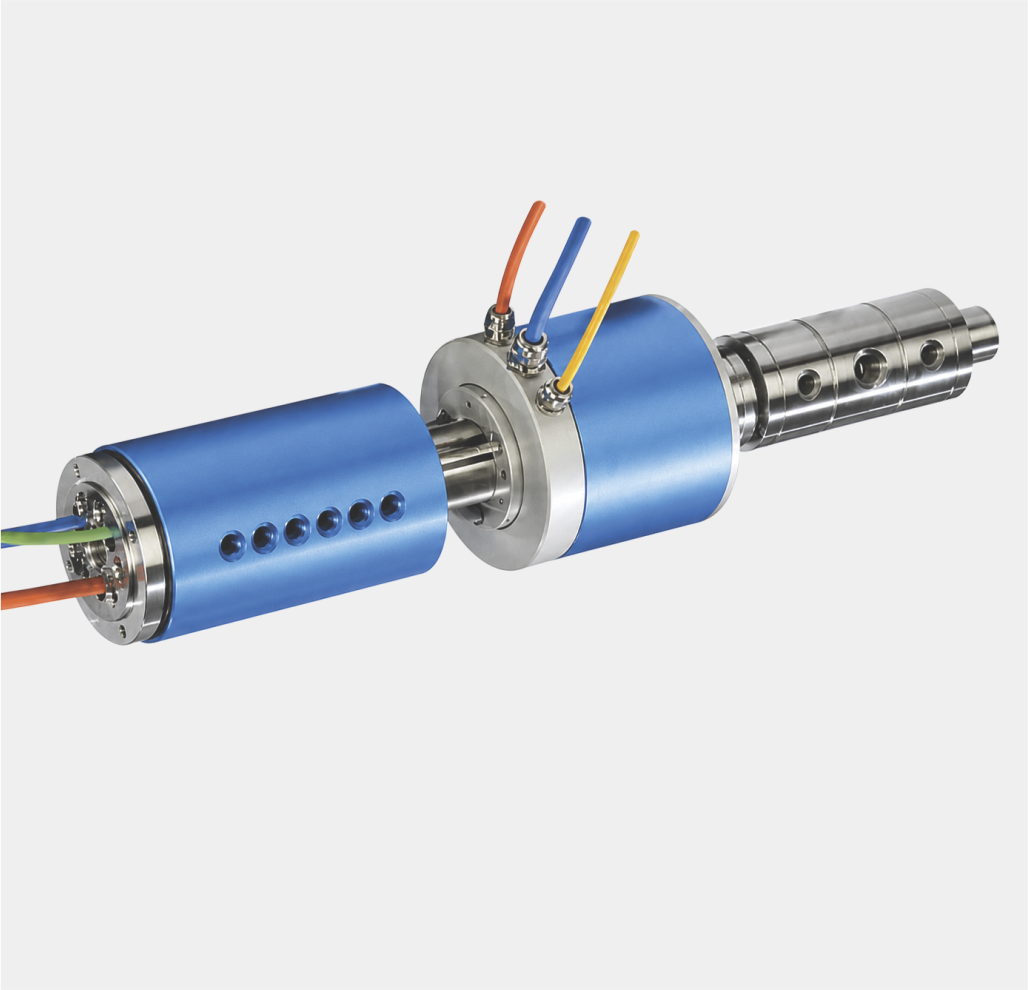

SPECIFIC-4

HYBRID ROTARY JOINT DESIGNED FOR AGGRESSIVE MEDIA, FEATURING A HOLLOW-SHAFT POWER SECTION
