F-PNE-HYD SERIES

MULTI PASSAGE / MULTI PORT / MULTI CHANNEL ROTARY JOINTS

FOR PNEUMATIC / HYDRAULIC & ELECTRICAL APPLICATIONS

FOURWENTS “FPN-HY-EP” SERIES ROTARY JOINTS ARE PRECISION DEVICES DESIGNED TO TRANSFER PNEUMATIC MEDIA (VACUUM, AIR, GAS) , HYDRAULIC FLUIDS (OIL, WATER, COOLANTS) , ELECTRICAL POWER, AND DATA SIGNALS (ETHERNET, USB, HDMI, ENCODER, CONTROL SIGNALS) CONCURRENTLY, WHILE ENABLING CONTINUOUS 360° ROTATION OF DEVICE

TYPICAL FEATURES / TECHNICAL SPECIFICATION

  • CAPABLE OF TRANSMITTING PNEUMATIC AND HYDRAULIC MEDIA SUCH AS STEAM, COMPRESSED AIR, WATER, HOT OIL, HYDRAULIC OIL, VACUUM, VARIOUS LIQUIDS, ACIDS, AND BEVERAGES.
  • CONFIGURABLE WITH 1 TO 24 FLUID PASSAGES AND UP TO 300 POWER/SIGNAL CHANNELS.
  • STANDARD PORT OPTIONS: G 1/8", G 3/8", M 5, G 1/4", G 1/2"
  • SUPPORTS SIMULTANEOUS TRANSMISSION OF MIXED POWER AND SIGNALS INCLUDING USB, HDMI, GIGABIT ETHERNET, VGA, DVI, RF, SERVO MOTOR SIGNALS, AND INDUSTRIAL BUS SLIP RINGS.
  • COMPATIBLE WITH PIPE SIZES: 4MM, 6MM, 8MM, 10MM, 12MM, AND 15MM.

F-PNE-HYD SERIES

FOR HIGH PRECISION APPLICATIONS IN AEROSPACE, RADAR & MILITARY

MULTI-CIRCUITS SMALL SIZE SLIP RINGS

F-PNE-HYD -110

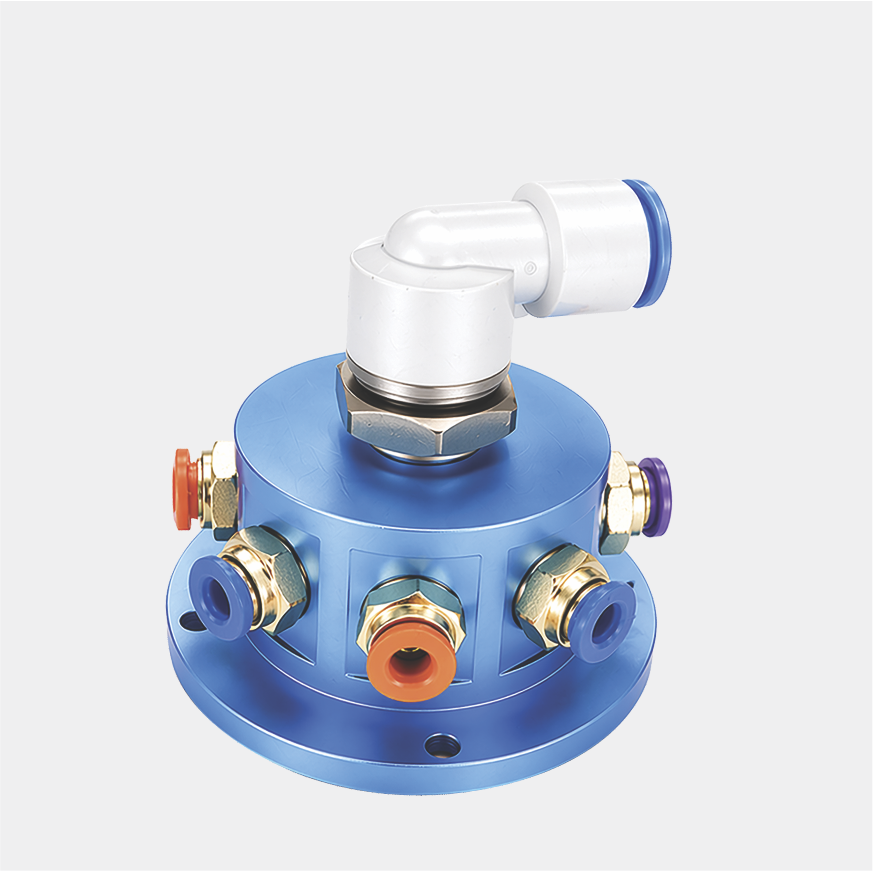

1PASSAGE IN AND 8 PORT OUT ROTARY JOINT

DESIGN FEATURES

  • 1 INLET PORT 15mm PIPE (G1/2" PORT) AND 8 OUTLET 8mm PIPE (G1/8" PORT)
  • CAN TRANSFER 8 VARIOUS MEDIUMS INCLUDING VACUUM, COMPRESSED AIR, STEAM, POSITIVE PRESSURE, NEGATIVE PRESSURE, HOT OIL AND COOLING WATER.
  • CAN COMBINE TO TRANSMIT ELECTRICAL POWER AND SIGNAL
  • PORT SIZE: 1 INLET ( G1/2" PORT ) 8 OUTLET ( G1/8"PORT )
  • PIPE SIZE: 1 INLET 15mm PIPE & 8 OUTLET 8MM PIPE

F-PNE-HYD -220

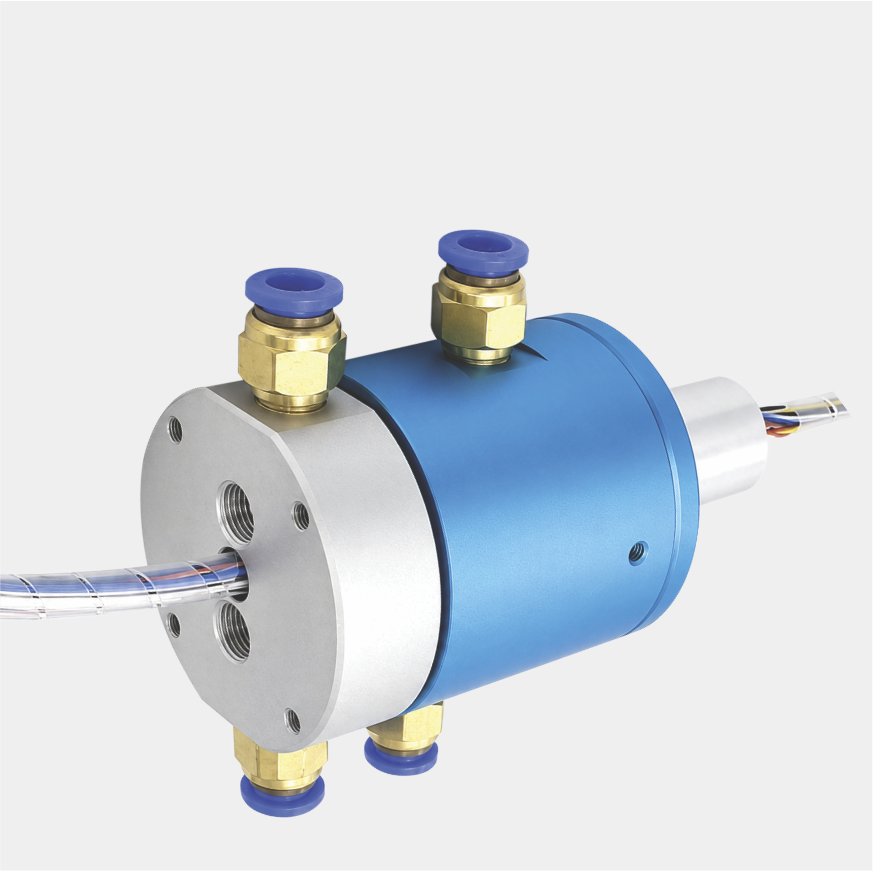

2 PASSAGE+ELECTRICAL (POWER / SIGNAL) ROTARY JOINT

DESIGN FEATURES

  • 2 PASSAGE G 1/8" PORT (6mmto8mm PIPES) + ELECTRICAL POWER / SIGNAL
  • SUPPORT G 1/8" PORT FOR 4mm to 8mm PIPES CAN TRANSFER VARIOUS MEDIUMS INCLUDING COMPRESSED AIR, VACUUM, STEAM, POSITIVE PRESSURE, NEGATIVE PRESSURE, HOT OIL AND COOLING WATER WHEN 360 ROTATING
  • CAN COMBINE TO TRANSMIT ELECTRICAL POWER AND SIGNAL
  • PORT SIZE: 1/8"
  • PIPE SIZE: 6mm to 8mm
  • AVAILABLE IN PASSAGES: 2 / 4 / 6 / 12 / 16 AND 24

F-PNE-HYD -330

4 PASSAGE+PNEUMATIC / HYDRAULIC+ ELEC. ROTARY JOINT

DESIGN FEATURES

  • 4 PASSAGE M5 PORT (4mm PIPES) + ELECTRICAL POWER / SIGNAL
  • M5 PORT FOR 4mm PIPES CAN TRANSFER VARIOUS MEDIUMS INCLUDING COMPRESSED AIR, VACUUM, STEAM, POSITIVE PRESSURE, NEGATIVE PRESSURE, HOT OIL AND COOLING WATER WHEN 360 ROTATING
  • CAN COMBINE TO TRANSMIT ELECTRICAL POWER AND SIGNAL.
  • PORT SIZE: (M5)
  • PIPE SIZE: 4mm TO 6mm
  • AVAILABLE IN PASSAGES: 2 / 4 / 6 / 12 / 16 AND 24

FPN-HY-EP -440

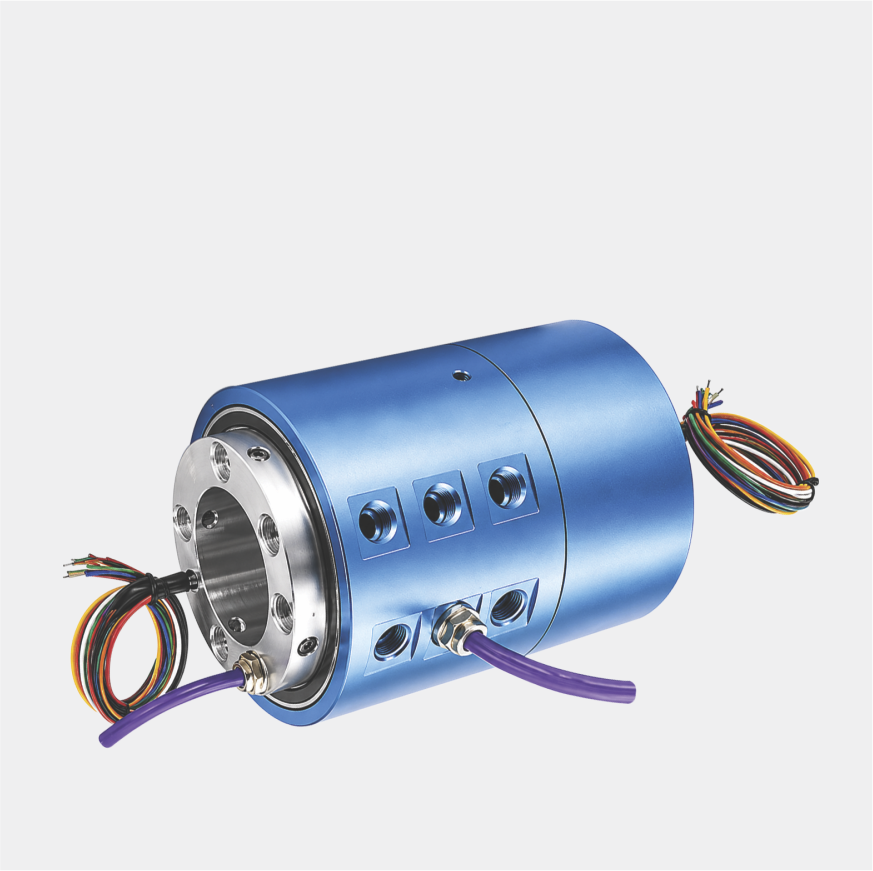

2 to 6 PASSAGE HOLLOW SHAFT ROTARY JOINT ( WITH CENTER HOLE 20 / 50 / 100MM )

DESIGN FEATURES

  • 2 PASSAGE (M5 PORT, 4 TO 6mm PIPES+ ELECTRIC POWER / SIGNAL)
  • CAN TRANSFER 8 VARIOUS MEDIUMS INCLUDING VACUUM, COMPRESSED AIR, STEAM, POSITIVE PRESSURE, NEGATIVE PRESSURE, HOT OIL AND COOLING WATER.
  • CAN COMBINE TO TRANSMIT ELECTRICAL POWER AND SIGNAL.
  • PORT SIZE: M5
  • PIPE SIZE: 4mm TO 6mm
  • AVAILABLE IN : 20mm / 50mm / 100mm CENTER HOLE
TO KNOW MORE...
OUR PRODUCT DETAILS VIEW OUR BROCHURE
